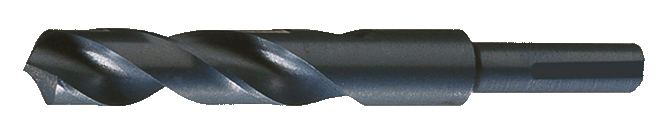

1 13/64'' HSS STEAM OXIDE REDUCED-3FLATS DRILL BITS | METAL DRILL BITS

1 13/64'' HSS STEAM OXIDE REDUCED-3FLATS DRILL BITS

Ships Today!
Ask For Spec Sheet

Technical Specifications
Part# 52477
Drill Construction General purpose
Drill Diameter 1 13/64''
Drill Size System Fractional
Drill Style Right
Flute Length 3.1250''
Flute Type Spiral
Hand of Cut Right
Hand of Spiral Right
Manufacturer Chicago-latrobe
Material Hss
Number of Flutes 2
Overall Length 6.0000''
Point Angle 118°
Point style Split
Shank Configuration Reduced w/ flats
Shank Size 0.5000''
Surface condition Steam oxide

Product Description
A drill bit is a tool that is used to drill holes. There are different types depending on the geometry of the drilling to be made and the machined materials. A drill bit works by cutting the material at its end.
